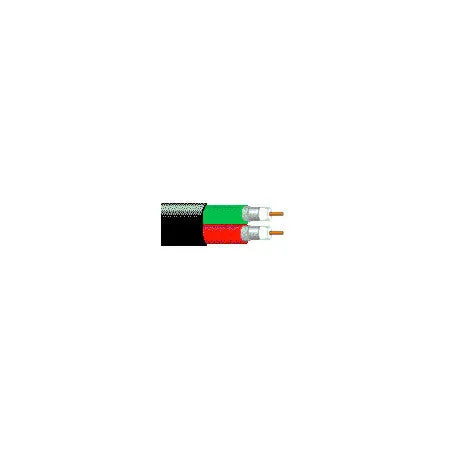

Belden 1694D Dual RG-6/U Type Precision Low Loss Serial Digital Video coaxDual RG-6/U type, (2) 18 AWG solid .040" bare copper conductors, gas-injected foam HDPE insulation, Duofoil plus tinned copper braid shield (95% coverage), inner PVC jackets, overall PVC jacket.

Technical Data

• Nom. Impedance: 75 Ohm
• Nom. Capacitance Conductor to Shield (pF/ft): 16.2
• Nominal Velocity of Propagation: 82%
• Nominal Delay: Delay (ns/ft) 1.24
• Nom. Conductor DC Resistance:DCR @ 20?hm/1000 ft): 6.4
• Nom. Inner Shield DC Resistance@ 20?hm/1000 ft): 3.0
• Inner Shield Material (Dual Layer):#1 Duofoil Tape Aluminum Foil-Polyester Tape-Aluminum Foil 100% Coverage; #2 - Braid TC - Tinned Copper 95%
• Overall Nominal Diameter: 0.344 x 0.618 in.
• Outer Jacket Material: PVC
